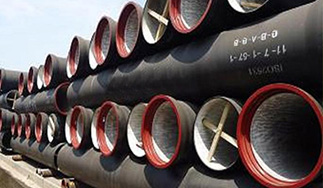

Main characteristics of the ductile pipe
-Fast, economical and secure installation.
-resistance to high pressures.
-Possibility of axial play and angular deviation.
-Permanence in the time of its mechanical qualities.
JGS elastic joint
The seal is obtained by the radial compression of the rubber ring, obtained at the time of assembly, by the simple insertion of the spike in the case.
Security of internal pressure:
-Buried and outdoors piping.
-Medium to high pressures.
-Installation in Mantes water
Security to internal pressure
Guaranteed by compression of the elastomer on the walls of the tube thanks to the internal pressure of the fluid.
angular deflection angle and axial clearance
The important angular deviation that the board supports, gives great flexibility to the design and installation, allowing the elimination of special parts; And the axial play allows you to adsorb the dilation of small amplitudes. The angular deviation and the game in length guarantee an excellent behaviour in case of movement of the terrain or of undermining.
coatings

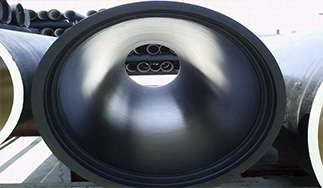

Internally, it is composed of an application by centrifugation of cement mortar, which gives it high safety and allows it to withstand high speeds of runoff and roughness coefficients that confer excellent hydraulic conditions.
Externally they are coated with metallic zinc placed by electrostatic deposition (130 g/m2 According to international regulations, 200 g/m2 according to official regulations), on which a film of bituminous varnish or epoxíco is applied.
Advantages
Ductile iron pipes and connections have high safety ratings, which considerably reduces the risks in installation and operation, guaranteed:
-Mechanical resistance to earthworks, installation in routes and works of trench opening in the vicinity of the pipeline.
-Mechanical resistance to demanding installation conditions, such as heavy traffic loads and low coating height.
-Resistance to overpressures produced by transients.
-The pressure rematch enables, the future flow increments without the need to change the pipeline.
--Very simple joint project, eliminating any risk of human error during assembly. 100% airtight and pressure-resistant.
-High corrosion resistance.
-More proven life.
-quality assurance of the products in accordance with the ISO 9000 series quality certificate.

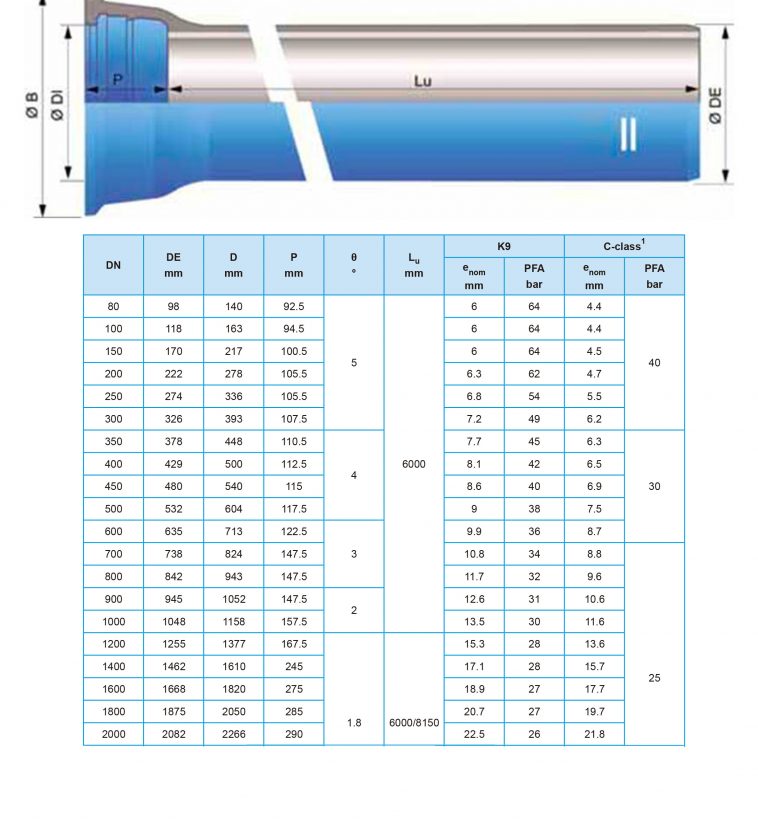

Range
DN 80 a 600 mm/ 6 m useful.
DN 700 a 1200 mm / 6 o 7 m useful.
DN 1400 a 2000 mm / 8m useful.
versions
-Pipe (2 kinds of pressure)
-Accessories with Bell and flanges.
Other types of union
-Flange (ISO 7005-2)
-Flanged ANSI B16.10
pressure
Flanged Pipes and Fittings: On 10, 16, 25 and 40.
Tubes with Bell: pressures of works exceeding 19 kg/cm2.
(suitable for potable water and sanitation networks)

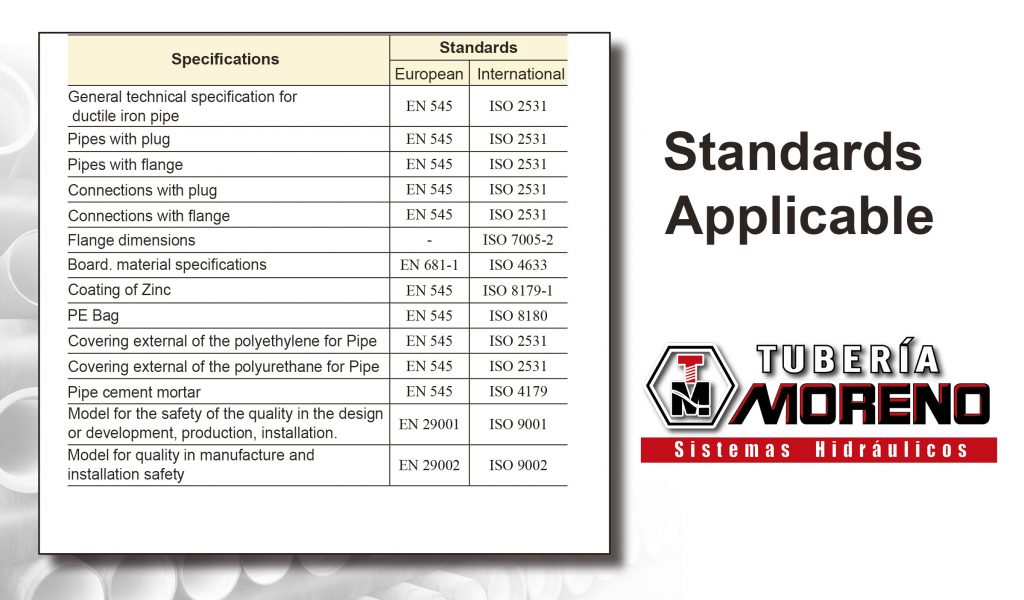

standards
ISO 2531 tubes; Elastomer: ISO 4633.
Cladding: ISO 4179/8179 Part 1.
